Alloy 7-spd Folding Bike



Coming soon

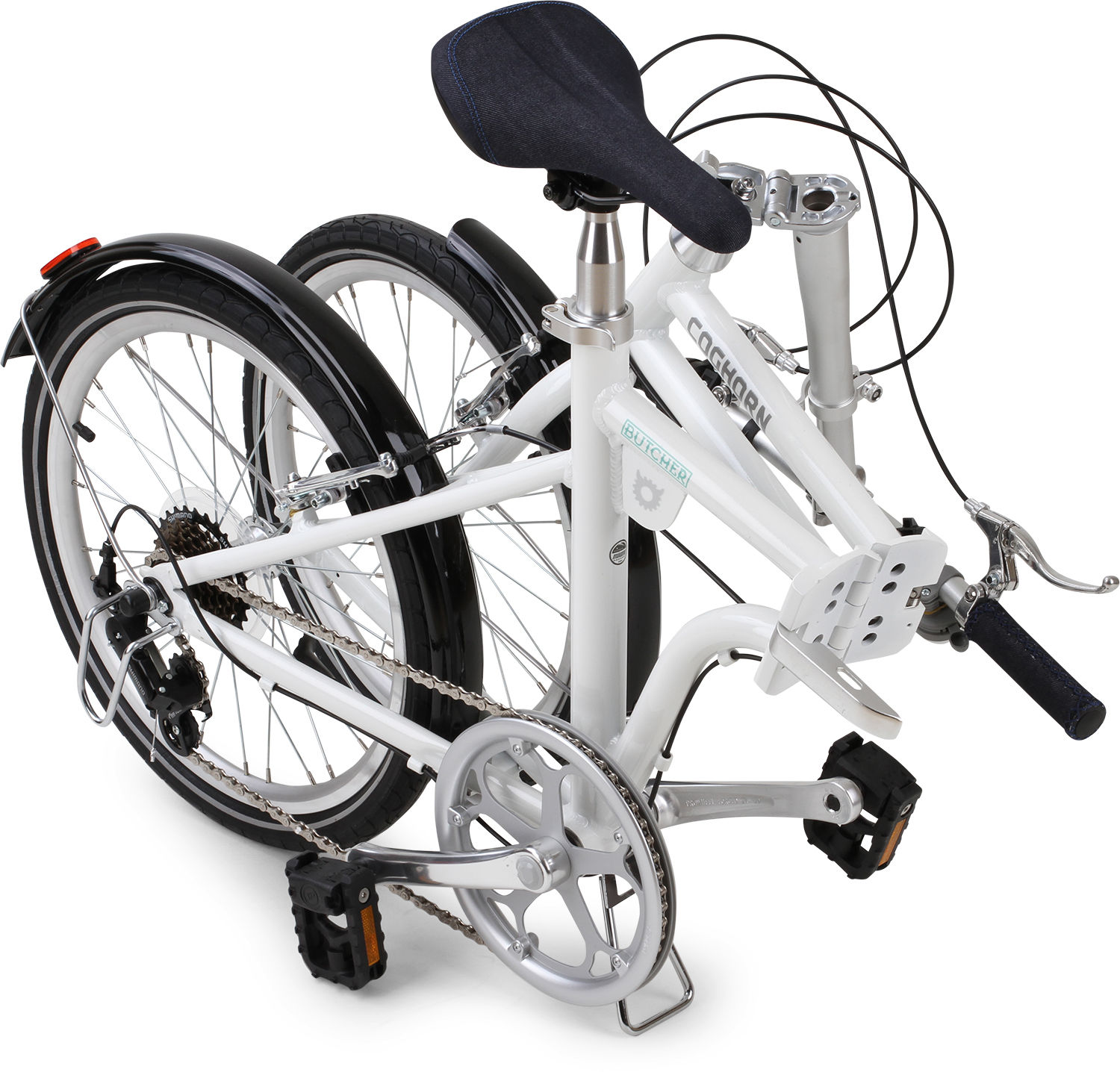

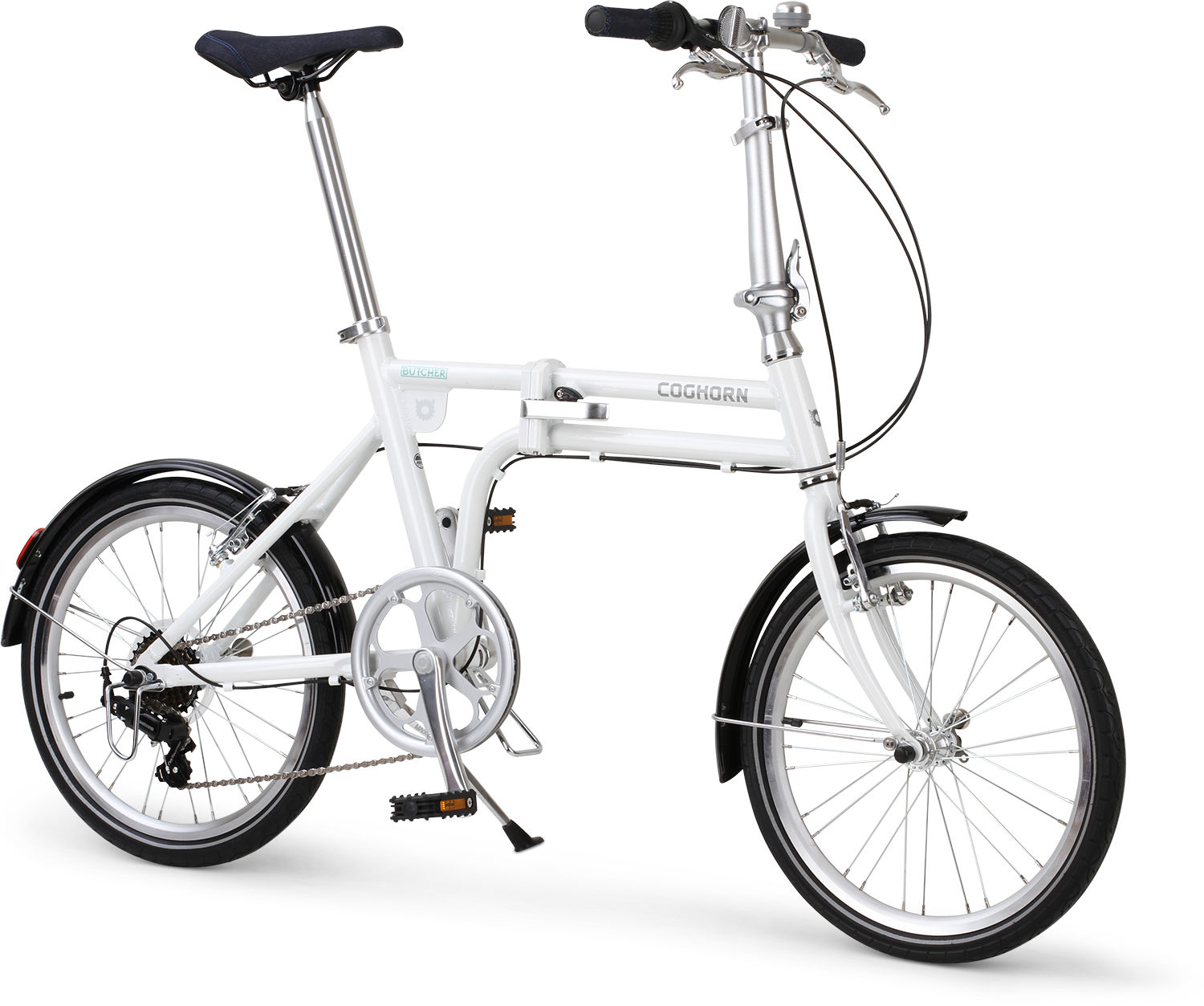

COGHORN® Butcher® Folding Bike with 7-speed Alloy Frame and 20in Wheels

BUTCHER

CHARGE!

The BUTCHER features a lightweight alloy folding frame with ultra-secure SideClamp design, perfect for packing down for any bike adventure. Our folding handlebar is stiff, adjustable and goofproof, providing a dignified, upright ride.

Ready to ride!

All COGHORN® folding bikes are shipped ready to ride, tuned up for your instant satisfaction. Your cogs, cables, noodles, doodles and ferrules are delivered ship shape, prepared by our team of bike nerds. And for your inner-nerd: all COGHORN® bikes include our Do-it-Y’All Multi-Tool, a 16-tool-in-1 wonder that will impress your friends -- totally FREE.

Stylin'!

If you don’t mind a little debonair flair with your fold, all COGHORN® bikes include our Dungaree Stitch Saddle and Grips. Overall, our bikes are the product of decades of design experience and bike insight in an effort to offer charming and sophisticated rides with exceptional value.

Devil in the details!

We’ve sharpened our horns to make sure we’ve included exceptional features for your BUTCHER including a rust-buster chain, oversized seatpost, a full-coverage fender set, double wall rims, reflective tire sidewalls, and many more deluxe details and components.

Specifications

By the numbers! 7-speed Shimano® Drivetrain, 20-in Double Wall Rims with Kenda® 20 x 1.75 in tires, Front and Rear Alloy V-Brakes with Jagwire® cables, Oversized 34mm Seatpost for riders 5’ to 6’+ and up to 230lbs.

Frame 20" alloy folding frame with frame OverClamp
Folding No tools required.
Assembly Delivered fully assembled and ready to ride.
Front fork 20" alloy fork with tapered design.
Handlebar Up-rise alloy.
Stem Alloy, foldable with built in mechanism. No tools required.
Seatpost Alloy quick release clamp. No tools required.
Grips COGHORN® Dungaree stitch grips.
Pedals Quick-Flip folding pedals.
Rim Double-wall alloy rims.
Tires 20" x 1.5" Kenda® Kwest with reflective sidewall.
Saddle COGHORN® Dungaree stitch saddle.
Drivetrain SHIMANO® Tourney
Chainwheel 52T steel chainwheel with 170mm alloy crank arms. Includes double-sided chain guard.
Gearing 14-28T 7-speed freewheel.
Brakes Alloy V-brakes.
Fenders Full coverage steel fender set.
Kickstand Alloy, center stand.
Folded size 30 x 36 x 17 in
Packed size 25 x 26 x 17 in
Suggested rider height Suggested for adults and teens (5'3" to 6'3")
Max rider weight Supports riders up to 220 lbs.
Weight __ lbs
Dropout Spacing F/R 80/135mm
Crankarm length 170mm
Length of Bike 61 inches
Chain Ring Teeth 52
Rear Sprocket Teeth 14,16,18, 20, 22, 24, 28
Gear inches
Minimum saddle height 34 inches
Maximum saddle height 44 inches
Wheelbase 40 inches
Seatpost/handlebar distance 23 inches
Minimum handlebar height 41 inches
Maximum handlebar height 45 inches
Pedal to saddle (min) 28.5 inches
Pedal to saddle (max) 38 inches

FREE 16-in-1 multi-tool

included with the purchase of all COGHORNS.
